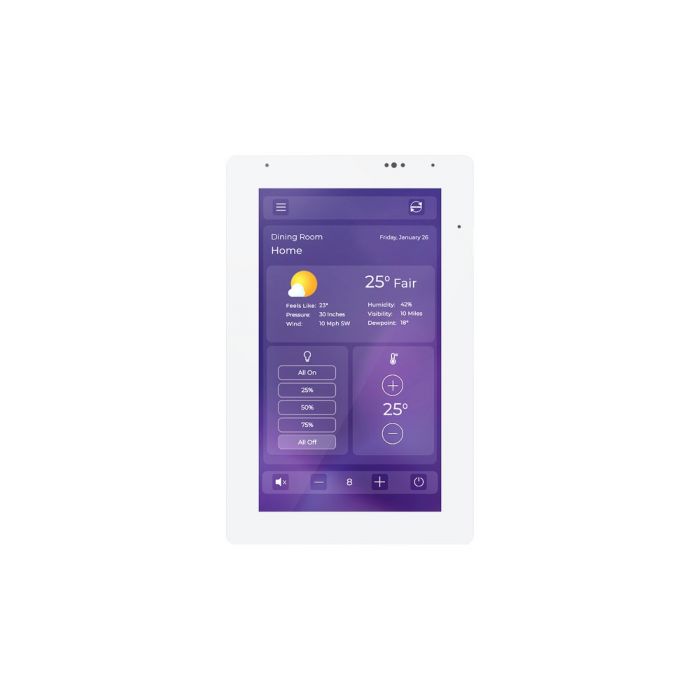

NEW: IST-5-W - 5" Intelligent Surface Touchpanel - White
The new IST-5 touchpanel elevates system control in all commercial and residential settings. It starts with a hi-resolution 5” capacitive-touch screen with a 854x480 resolution with true-black display filter for exceptional clarity. With an ultra-thin bezel, near-flush mount (just 0.47”/12mm off the wall), and elegantly compact form-factor, the IST-5 makes an elegant statement in landscape or portrait mount. Built-in Ethernet with PoE enables seamless two-way system control, video, and remote programming.
The hi-res display is perfect for the 100% customizable RTI user interface, with fast response and easy swiping. The proximity sensor enables a fast hands-free wake while the ambient light sensors automatically adjust display brightness. With elevated processing power and enhanced memory, the IST-5 plays hi-resolution video in H.264 or H.265 format and is ideal for viewing security camera feeds. Dual speakers, far-field microphone array, SIP-readiness, plus full duplex capability make the IST-5 perfect for intercom and as an interface with video doorbells. The 2-mic array features a mute button plus hardware-based echo cancellation.
With its included mounting bracket, the IST-5 mounts easily in a US single gang box and is compatible with standard wall boxes in most countries.
Included in the box:
IST-5, metal wall bracket (1), mounting bracket screws (4)
In-Wall
The ultra-thin bezel, near-flush mount (just 0.47”/12mm off the wall), and elegantly compact form-factor accommodate any environment with a sleek modern design.
854x480 Screen Resolution
High resolution, 24-bit color display to elevate the user interface to its full potential and display clear, vibrant video.
Ethernet
Check the weather forecast, view video from network security cameras, or perform remote programming updates through a standard 10/100 BaseT network connection.
PoE
Power the touchpanel through a PoE network switch or PoE injector. No extra power supply required.
2.4/5 Ghz Wi-Fi
Wi-Fi for control enables connectivity to suit every application.
Microphone Array
Pick up all communications with great clarity, whether near or far, with a mute button when needed.
Speakers
Clear stereo sound from two speakers to elevate communications.
Ambient Light Sensor
Enables the perfect display brightness automatically set depending on the ambient light.
Proximity Sensor
Wake the touchpanel by just approaching it. convenient when entering a dark room.
- Hi-resolution 5” capacitive-touch screen (854x480) with ultra-thin bezel.
- Near-flush mount (just 0.47”/12mm off the wall).
- Ethernet and Wi-Fi options for control and communication.
- PoE or 12V DC power options.
- Exceptional video streaming and two-way intercom at H.264 or H.265 format.
- Dual speakers and far-field microphone array (with mute button).
- Proximity and ambient light sensors.
- Portrait or landscape.
| Power (Power Supply not included) | +12VDC, 2A or PoE (802.3af) |
| Power Management | Adjustable backlight/ proximity sensor |
| Touchscreen Display | High-brightness color IPS LCD FWVGA (854x480 pixels) with true black display filter Integrated high-resolution capacitive-touch screen |
| Display Size | 5" (127mm) diagonal. 16:10 aspect ratio |
| Display Backlight | LED Backlit, 400nit |
| Ethernet Port | RJ-45, 10/100 Base-T with Power-over-Ethernet |
| Microphone | Built-in digital microphone array Mute button, hardware-based echo cancellation |
| Speakers | Two (2), 8 Ohms, 1 Watt |
| Communications | Ethernet / Network IP WiFi 2.4G/5G 802.11a/b/g/n/ac |
| Total System Memory | 4GB RAM, 64GB ROM |
| Device Capability | Total number of devices is limited only by memory |
| Macro Capability | Total number of macros is limited only by memory |
| Operating Temperature | 0 to +50°C / +32 to +122°F |
| Operating Humidity | 5% to 95% Non-condensing |
| Mounting | Wall-Mount |
| Installation | US standard single gang |
| Outer Bezel Dimension (WxH) | 5.24” x 3.33” x 0.43” 133 mm x 84.5 mm x 10.9mm |
| Wall Cut-Out Dimension (W x H) | 2.15” x 3.6” 54.7mm x 91.5mm |
| Depth in Wall (Wall Box) | 1.34" (34.0mm) |
| Weight | 7.05 oz (200g) |
| Warranty | Three Years (Parts & Labor) |
| Prop 65 Declaration | This product contains Butadine which is listed on California’s Safe Drinking Water & Toxic Enforcement Act of 1986. This Act, commonly known as Proposition 65 (Prop 65), establishes a list of chemicals which the state of California’s risk assessment process has determined to present a risk of cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
All features and specifications subject to change without notice.
