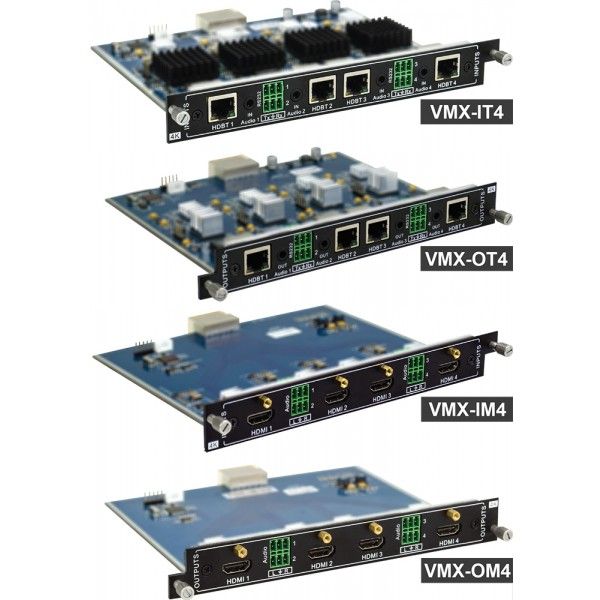

VMX Input/Output Cards for VMX-8/16/32 Chassis
This product is discontinued.
The input and output cards allow for customization of the VMX-8, VMX-16, or VMX-32 Modular Video Matrix Chassis. Please note that some cards are special order only and require minimum quantities. Please inquite with your authorized distributor.
Input Cards:
- 4 x HDMI 1080p / Analog Audio Input
- 4 x HDMI 4K / Analog Audio Input
- 4 x HDBaseT 1080p / Analog Audio Input
- 4 x HDBaseT 4K / Analog Audio Input
- 4 x DVI Input
- 4 x SDI 1080p Input
- 4 x VGA / Analog Audio Input
- 4 x Fiber Optic 4K Input
Output Cards:
- 4 x HDMI 1080p / Analog Audio Output
- 4 x HDMI 4K / Analog Audio Output
- 4 x HDBaseT 1080p / Analog Audio Output
- 4 x HDBaseT 4K / Analog Audio Output
- 4 x VGA / Analog Audio Output Card
- 4 x Fiber Optic 4K Output
- Input/Output Cards for a VMX-8, VMX-16, or VMX-32 Modular Video Matrix Chassis
- Cards for HDMI, HDBaseT, DVI, VGA, Fiber or SDI.
- HDCP 1.2 or 1.4 compliant, supporting HDMI 1.3/1.4*.
- Powerful EDID management.
- HDBaseT outputs transmit a 1080p video signal up to 230 feet (70m) or 4Kx2K up to 130ft (40m) over a Cat5E/6 cable.
* depending on card
VMX-IM1 4-Channel HDMI 1080p Input Card
| Video Input | Four, HDMI |
| Compliance | HDMI 1.3, HDCP 1.2 |
| Max. Input Resolution | 1080p |
| Analog Audio Input | Four, 3-pin Phoenix Stereo Connector |
VMX-IM4 4-Channel HDMI 4K Input Card
| Video Input | Four, HDMI |
| Compliance | HDMI 1.4, HDCP 1.4 |
| Max. Input Resolution | 4Kx2K @30Hz |
| Analog Audio Input | Four, 3-pin Phoenix Stereo Connector |
VMX-IT1 4-Channel HDBaseT 1080p Input Card
| Video Input | Four, HDBaseT (RJ45) |
| Compliance | HDMI 1.3, HDCP 1.2 |
| Max. Input Resolution | 1080p |
| Analog Audio Input | Four, 3.5mm Stereo Jack |
| RS-232 Input | Four, 3-pin Phoenix Connector |
| HDBaseT Transmission Distance | 1080P ≤ 230ft (70m) |
VMX-IT4 4-Channel HDBaseT 4K Input Card
| Video Input | Four, HDBaseT (RJ45) |
| Compliance | HDMI 1.4, HDCP 1.4 |
| Max. Input Resolution | 4Kx2K @ 30Hz |
| Analog Audio Input | Four, 3.5mm Stereo Jack |
| RS-232 Input | Four, 3-pin Phoenix Connector |
| HDBaseT Transmission Distance | 1080P ≤ 230ft (70m) 4Kx2K ≤ 131ft (40m) |
VMX-ID1 4-Channel DVI 1080p Input Card
| Video Input | Four, DVI |
| Compliance | HDMI 1.3, HDCP 1.2 |
| Max. Input Resolution | 1080p |
VMX-IS1 4-Channel SDI 1080p Input Card
| Video Input | Four, SDI (Female BNC) |
| Video Loop Out | Four, SDI (Female BNC) |
| Compliance | 3G-SDI |
| Max. Input / Output Resolution | 1080p |
VMX-IV1 4-Channel VGA Input Card
| Video Input | Four, VGA (Female 15-pin HD) |
| Max. Input Resolution | 1080p |
| Analog Audio Input | Four, 3-pin Phoenix Stereo Connector |
VMX-IF4 4-Channel Fiber Optic 4K Input Card
| Video Output | Four, SPF fiber optical |
| Compliance | HDMI 1.4, HDCP 1.4, 4K@60Hz 4:2:0 |
| Max. Output Resolution | 4K |
| Max. fiber length | Multi-mode 300m, single-mode 1Km |
VMX-OM1 4-Channel HDMI 1080p Output Card
| Video Output | Four, HDMI |
| Compliance | HDMI 1.3, HDCP 1.2 |
| Max. Output Resolution | 1080p |
| Analog Audio Output | Four, 3-pin Phoenix Stereo Connector |
VMX-OM4 4-Channel HDMI 4K Output Card
| Video Output | Four, HDMI |
| Compliance | HDMI 1.4, HDCP 1.4 |
| Max. Output Resolution | 4Kx2K @30Hz |
| Analog Audio Output | Four, 3-pin Phoenix Stereo Connector |
VMX-OT1 4-Channel HDBaseT 1080p Output Card
| Video Output | Four, HDBaseT (RJ45) |
| Compliance | HDMI 1.3, HDCP 1.2 |
| Max. Output Resolution | 1080p |
| Analog Audio Output | Four, 3.5mm Stereo Jack |
| RS-232 Output | Four, 3-pin Phoenix Connector |
| HDBaseT Transmission Distance | 1080P ≤ 230ft (70m) |
VMX-OT4 4-Channel HDBaseT 4K Output Card
| Video Output | Four, HDBaseT (RJ45) |
| Compliance | HDMI 1.4, HDCP 1.4 |
| Max. Output Resolution | 4Kx2K @ 30Hz |
| Analog Audio Output | Four, 3.5mm Stereo Jack |
| RS-232 Output | Four, 3-pin Phoenix Connector |
| HDBaseT Transmission Distance | 1080P ≤ 230ft (70m) 4Kx2K ≤ 131ft (40m) |
VMX-OV1 4-Channel VGA Output Card
| Video Output | Four, VGA (Female 15-pin HD) |
| Max. Output Resolution | 1080p |
| Analog Audio Output | Four, 3-pin Phoenix Stereo Connector |
VMX-OF4 4-Channel Fiber Optic 4K Output Card
| Video Output | Four, SPF fiber optical |
| Compliance | HDMI 1.4, HDCP 1.4, 4K@60Hz 4:2:0 |
| Max. Output Resolution | 4K |
| Max. fiber length | Multi-mode 300m, single-mode 1Km |
All features and specifications subject to change without notice.
